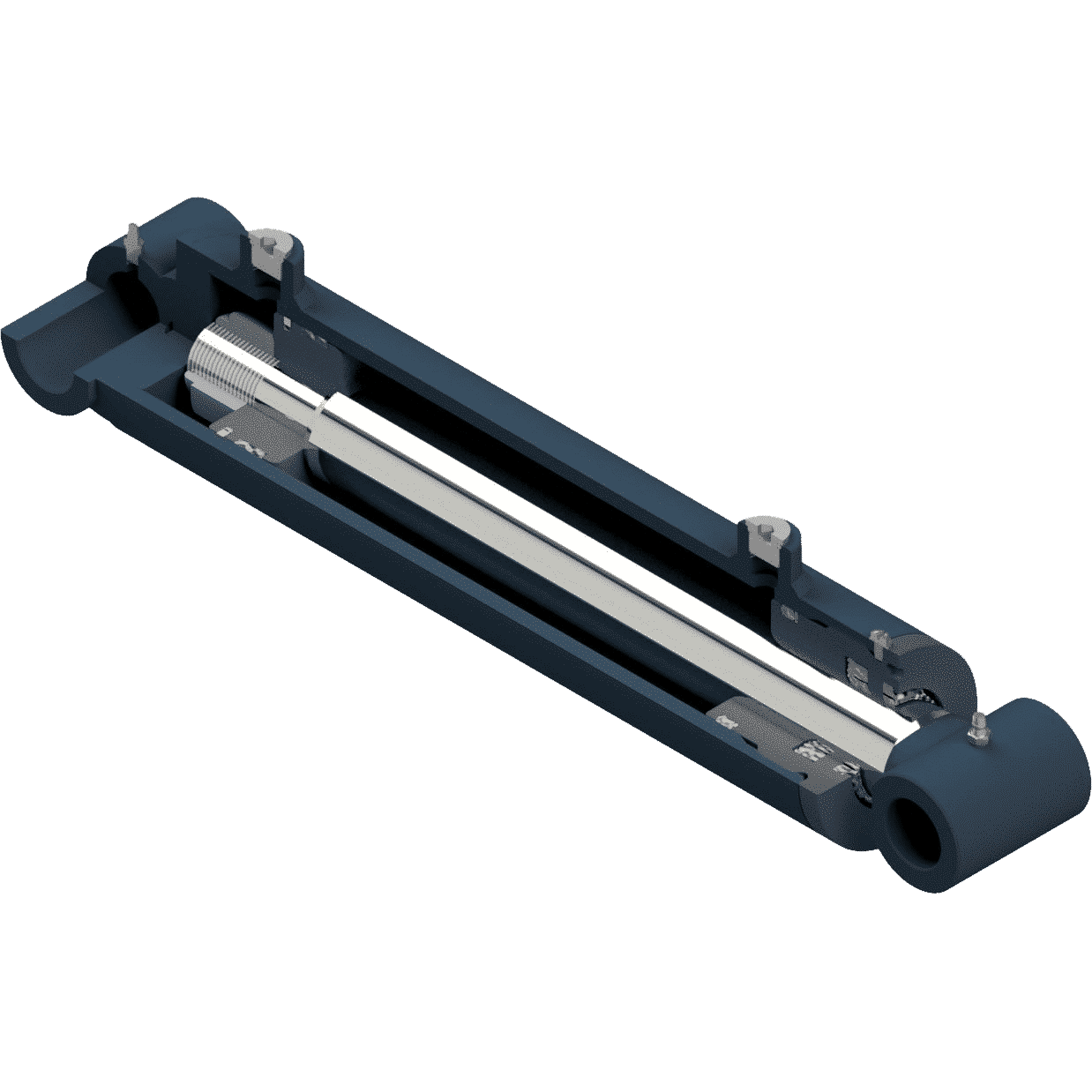

Aggressive Hydraulics 200 Series Cylinders Medium-Duty Hydraulic Cylinders (2,500 psi)
- Cross tube style base and rod mounts
- 2500 PSI Standard Duty Type
- Cold drawn (high impact) 75,000 min.yield D.O.M. tubing
- Ground & polished, hard chrome plated rods (75,000 min. yield)
- Welded style construction certified to A.W.S. B2.1
- Internally threaded head design with buttress threads
- Highest quality seal configurations compatible with petroleum base fluids
- Ductile iron head gland & piston
- Piston utilizes wear bearings
- Nylon inserted lock nut
- Standard paint; black primer
- Try the Aggressive Hydraulics Pre-Engineered Cylinder Drawing Program
| Bore | Rod | A | B | CD | E | F | G | H | I | J | K | L | Part # |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| 1.50 | .75 | 2.00 | 1.31 | .750 | .56 | 6.25 | .62 | 3.25 | 1.88 | 2.50 | 2.50 | #4 | 204-**.** |
| 1.00 | 2.00 | 1.19 | .750 | .56 | 6.25 | .62 | 3.25 | 1.88 | 2.50 | 2.50 | #4 | 206-**.** | |
| 2.00 | 1.00 | 2.50 | 1.44 | 1.000 | .69 | 7.00 | .75 | 3.69 | 2.06 | 2.50 | 3.00 | #6 | 210-**.** |
| 1.12 | 2.50 | 1.56 | 1.000 | .69 | 7.00 | .75 | 3.69 | 2.06 | 2.50 | 3.00 | #6 | 212-**.** | |
| 1.25 | 2.50 | 1.31 | 1.000 | .69 | 7.00 | .75 | 3.69 | 2.06 | 2.50 | 3.00 | #6 | 214-**.** | |
| 2.50 | 1.25 | 3.00 | 1.69 | 1.000 | .81 | 7.50 | .88 | 3.81 | 2.44 | 2.50 | 3.25 | #6 | 218-**.** |
| 1.50 | 3.00 | 1.50 | 1.000 | .81 | 7.75 | .88 | 4.00 | 2.50 | 2.50 | 3.25 | #6 | 220-**.** | |
| 3.00 | 1.25 | 3.50 | 1.50 | 1.000 | .81 | 7.75 | .88 | 3.94 | 2.56 | 2.50 | 3.75 | #8 | 224-**.** |
| 1.50 | 3.50 | 1.38 | 1.000 | .81 | 7.75 | .88 | 3.81 | 2.69 | 2.50 | 3.75 | #8 | 226-**.** | |
| 1.75 | 3.50 | 1.38 | 1.000 | .81 | 7.75 | .88 | 3.81 | 2.69 | 2.50 | 3.75 | #8 | 228-**.** | |
| 2.00 | 3.50 | 1.38 | 1.000 | .81 | 8.00 | .88 | 4.06 | 2.69 | 2.50 | 3.75 | #8 | 230-**.** | |
| 3.50 | 1.50 | 4.00 | 1.44 | 1.250 | .88 | 8.00 | 1.00 | 3.88 | 2.88 | 2.75 | 4.25 | #8 | 234-**.** |
| 1.75 | 4.00 | 1.44 | 1.250 | .88 | 8.00 | 1.00 | 3.88 | 2.88 | 2.75 | 4.25 | #8 | 236-**.** | |
| 2.00 | 4.00 | 1.44 | 1.250 | .88 | 8.00 | 1.00 | 3.88 | 2.88 | 2.75 | 4.25 | #8 | 238-**.** | |
| 4.00 | 1.50 | 4.50 | 1.56 | 1.250 | .88 | 8.25 | 1.00 | 4.00 | 3.00 | 2.75 | 4.75 | #8 | 242-**.** |
| 1.75 | 4.50 | 1.62 | 1.250 | .88 | 8.50 | 1.00 | 4.06 | 3.19 | 2.75 | 4.75 | #8 | 244-**.** | |
| 2.00 | 4.50 | 1.62 | 1.250 | .88 | 8.50 | 1.00 | 4.06 | 3.19 | 2.75 | 4.75 | #8 | 246-**.** | |
| 2.50 | 4.50 | 1.62 | 1.250 | .88 | 8.75 | 1.00 | 4.31 | 3.19 | 2.75 | 4.75 | #8 | 248-**.** | |
| 4.50 | 1.75 | 5.00 | 1.50 | 1.250 | .88 | 8.75 | 1.00 | 3.94 | 3.31 | 2.75 | 5.25 | #8 | 252-**.** |
| 2.00 | 5.00 | 1.50 | 1.250 | .88 | 8.75 | 1.00 | 3.94 | 3.31 | 2.75 | 5.25 | #8 | 254-**.** | |
| 2.25 | 5.00 | 1.50 | 1.250 | .88 | 8.75 | 1.00 | 3.94 | 3.31 | 2.75 | 5.25 | #8 | 256-**.** | |
| 5.00 | 2.00 | 5.62 | 1.88 | 1.500 | 1.12 | 9.75 | 1.25 | 4.31 | 3.94 | 2.75 | 6.00 | #8 | 260-**.** |
| 2.50 | 5.62 | 1.88 | 1.500 | 1.12 | 10.00 | 1.25 | 4.56 | 3.94 | 2.75 | 6.00 | #8 | 262-**.** | |
| 3.00 | 5.62 | 1.88 | 1.500 | 1.12 | 10.00 | 1.25 | 4.56 | 3.94 | 4.25 | 6.00 | #8 | 264-**.** |
All Pre-engineered Cylinders are manufactured in the U.S.A. and are backed by the Aggressive Hydraulics Cylinder Warranty.
- To complete part#; replace (**.**) with stroke required
- Maximum allowable stroke length for a given model is dependent on the actual maximum operating pressure and compressive load. Buckling strength limit for a cylinder will be calculated at the time of initial order or upon customer request.
- Other port sizes and locations are available upon request
- Consult factory for longer stroke and or higher pressure applications
