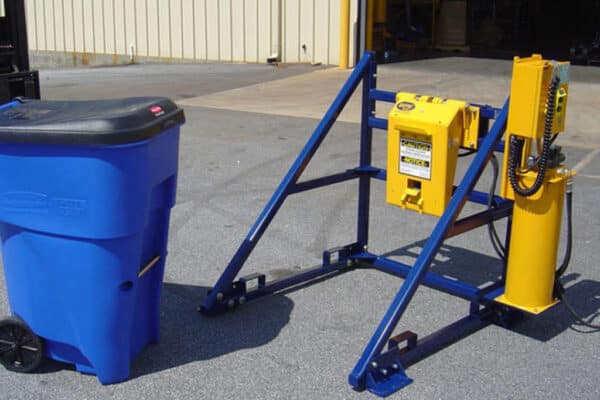

Bayne C/I Taskmaster™ Series Cart Lifter
The C/I Taskmaster™ series from Bayne Premium Lift Systems offers an economical and safety-conscious solution for a wide variety of waste material handling applications. The C/I Taskmaster™ series combines our advanced line of cylinder lift products mounted on rigid steel frames. C/I Taskmaster cart lifters, or cart tippers, come standard with hydraulic power unit and electrical controls and are ideal for use with balers and compactors.
- Compatible with standard domestic style 2-bar roll-out carts
- Solid hook drive mechanism automatically secures the cart to the lift plate during the dump cycle
- 230/460 volt 3-phase AC, 110/220 volt 1-phase AC and 12 volt DC self-contained hydraulic power units available
- Cycle times as low as 8 seconds
- Self-lubricating composite bearings at all pivot points eliminate the need for greasing
- Powder-coated finish for durability
- 1-Year Limited Warranty
Cart Compatibility
- C/I TSKM: ANSI Z245.60-2008 Type B Containers (domestic 2-bar carts)
- C/I HLIF: ANSI Z245.60-2008 Type B Containers (domestic 2-bar carts)
- C/I SHLF ANSI Z245.60-2008 Type B Containers (domestic 2-bar carts)
- Tilt Trucks with ANSI Standard 2-bar Configuration (up to 1yd. capacity)
Lift Capacity
- C/I TSKM: 550 lbs. @ 1800 psi
- C/I HLIF: 750 lbs. @ 2500 psi
- C/I SHLF: 1000 lbs. @ 2500 psi
Voltage (60 Hz)
- 230/460 volt 3-phase AC
- 110/220 volt 1-phase AC
- 12 volt DC
Hydraulic Pressure
- 2500 psi maximum
Hydraulic Flow
- 1.8 gpm
Cycle Time
- 8 seconds (C/I TSKM)
- 12 seconds (C/I HLIF, C/I SHLF)
Bearings
- Self-Lubricating Composite Material
Finish
- Safety Yellow Powder Coating
