Galbreath Hoist Equipment

Galbreath Heavy Duty Roll-Off Container Trailers

Condition: Build to Order
OEM Equipment Link

Galbreath’s heavy-duty tandem axle trailers are best for use in the scrap and refuse industries. They feature high-strength components that help it stand the test of time and constant abuse.

(A5-series) roll-off trailers feature a heavy-duty hoist for use in the scrap industry where longer containers and heavy loads are often seen.

  • A500 grade C structural tubing for main frames
  • A500 grade C structural tubing for main frame cross members
  • 36 lb. W.F. – I-Beam A36 Steel & C-Channel Cross Members
  • A36 Steel Formed C-Channel Cross Members
  • 2 OR 3 spool / 45 GPM w/ safety bypass
  • (2) 3-stage DAT Telescopic
  • (2) DA Rod Type
  • 2 ½” Solid Steel C1018 Rear Hinge Pin
  • â…ž” EXIWRC (Domestic) Steel Cable
  • Swivel Eye cable end (OR, OR/HH, IO, EX, EX/HH) – Knuckle (HH,EH)
  • 10″ Grease Grooved w/ Bronze Bushings
  • (4) 7/8″ Cable Clamps
  • 1 ½” Steel Plate Front Stops
  • Automatic Spring Loaded Pass Over Front Container Safety Lock
  • 1″ Steel Plate Stationary Rear Container Hold Downs
  • 4″ O.D. Side Rollers w/ Bronze Bushings
  • Top Rails have 1/2″ Angle Steel (IO models only); 3/8″ T1 Wear Strips on all ext. tail models
  • Fixed tail (OR, OR/HH, IO, HH models); 60″ ext. tail (EX, EX/HH, EH & OX models)
  • Auto Fold Mechanical w/ Energy Absorbtion (N/A on EX, EX/HH, HH & EH models)
  • 50k lb. rated Hutch Single Point Spring Ride w/ 25k lb. axles
  • 10-Hole Hub Piloted Steel Rims w/ 11R/22.5 16 Ply Tires w/ Wheel Check Indicators
  • Drum Brake Axles and Equipped w/ Spring Loaded Brake Controler
  • Twin Leg Holland Manual Landing Gear 50k lb. lift capacity
  • 1,850 PSI Operating Pressure
  • Flow of 37.5 GPM @ 1,500 RPM (required)
  • 50 or 65 gallon hydraulic tank capacity (required)

  • Pioneer Tarping Systems
  • Air Ride Suspension
  • Upgrade to Disc Brakes on all axles
  • Auxiliary hydraulic hook ups (single or dual acting to the rear)
  • Outside Rail Skid Plates; Full Length or Rear Wing
  • Outboard Supported Side Rollers
  • Tarp Boxes/Toolboxes
  • Fenders
  • Lift Axles (not available on -200 models)
  • Fixed Tri-Axle Suspension
  • Side or Underbody Mount spare tire carriers
  • Auxiliary Container Stops and Rear Hold Downs
  • Various Cable Ends
  • Scale Systems
  • Additional LED Work Lighting for Front and Rear of Trailer
  • Hubometer

Model Description
M6-OR-200 200 MODELS–68k lb. GVWR (outer bridge)–Outside Rail 35 1/2″ – 18′-26′ Containers
M6-IO-200 200 MODELS–68k lb. GVWR (outer bridge)–Inside/Outside Rail 35 1/2″ – 18′-26′ Containers
M6-HH-200 200 MODELS–68k lb. GVWR (outer bridge)–Dead Lift, Narrow Outside Rail 35″ – 18′-22′ Containers
M6-EX-200 200 MODELS–68k lb. GVWR (outer bridge)–Outside Rail 35 1/2″/Ext. Tail (80″) – 18′-24′ Containers
M6-OR-250 250 MODELS–72.5k lb. GVWR (outer bridge)–TANDEM AXLE–Outside Rail 35 1/2″ – 22′-30′ Containers
M6-IO-250 250 MODELS–72.5k lb. GVWR (outer bridge)–TANDEM AXLE–Inside/Outside Rail 35 1/2″ – 22′-30′ Containers
M6-HH-250 250 MODELS–72.5k lb. GVWR (outer bridge)–TANDEM AXLE–Dead Lift, Narrow Outside Rail 35″ – 22′-26′ Containers
M6-EX-250 250 MODELS–72.5k lb. GVWR (outer bridge)–TANDEM AXLE–Outside Rail 35 1/2″/Ext. Tail (80″) – 22′-26′ Containers
A5-OR-200 200 MODELS–68k lb. GVWR (outer bridge)–Outside Rail 35 1/2″ – 18′-26′ Containers
A5-IO-200 200 MODELS–68k lb. GVWR (outer bridge)–Inside/Outside Rail 35 1/2″ – 18′-26′ Containers
A5-HH-200 200 MODELS–68k lb. GVWR (outer bridge)–Dead Lift, Narrow Outside Rail 35″ – 18′-22′ Containers
A5-EX-200 200 MODELS–68k lb. GVWR (outer bridge)–Outside Rail 35 1/2″/Ext. Tail (80″) – 18′-24′ Containers
A5-OR-250 250 MODELS–72.5k lb. GVWR (outer bridge)–TANDEM AXLE–Outside Rail 35 1/2″ – 22′-30′ Containers
A5-IO-250 250 MODELS–72.5k lb. GVWR (outer bridge)–TANDEM AXLE–Inside/Outside Rail 35 1/2″ – 22′-30′ Containers
A5-HH-250 250 MODELS–72.5k lb. GVWR (outer bridge)–TANDEM AXLE–Dead Lift, Narrow Outside Rail 35″ – 22′-26′ Containers
A5-EH-250 250 MODELS–72.5k lb. GVWR (outer bridge)–TANDEM AXLE–Dead Lift, Narrow Outside Rail 35″/Ext. Tail (80″) – 22′-26′ Containers
A5-EX-250 250 MODELS–72.5k lb. GVWR (outer bridge)–TANDEM AXLE–Outside Rail 35 1/2″/Ext. Tail (80″) – 22′-26′ Containers
A5-OX-250 250 MODELS–72.5k lb. GVWR (outer bridge)–TANDEM AXLE–Outside Rail 35 1/2″/Long Ext. Tail (48″) – 22′-30′ Containers
A5-OR-330 330 MODELS–75k lb. GVWR (outer bridge)–TANDEM AXLE–Outside Rail 35 1/2″ – 20′-32′ Containers (80k GVW Rating – May Need An Additional Axle; Lift or Stationary *depends on truck wheelbase*)
A5-IO-330 330 MODELS–75k lb. GVWR (outer bridge)–TANDEM AXLE–Inside/Outside Rail 35 1/2″ – 20′-32′ Containers (80k GVW Rating – May Need An Additional Axle; Lift or Stationary *depends on truck wheelbase*)
A5-HH-330 330 MODELS–75k lb. GVWR (outer bridge)–TANDEM AXLE–Dead Lift, Narrow Outside Rail 35″ – 20′-29′ Containers (80k GVW Rating – Must Order an Additional Axle; Lift or Stationary *depends on truck wheelbase*)
A5-EX/HH-330 366 MODELS–75k lb. GVWR (outer bridge)–TANDEM AXLE–Narrow Outside Rail 35″/Ext. Tail (80″) w/ Combo Front Stops – 20′-29′ Containers (80k GVW Rating – Must Order an Additional Axle; Lift or Stationary *depends on truck wheelbase*)
A5-EX-330 330 MODELS–75k lb. GVWR (outer bridge)–TANDEM AXLE–Outside Rail 35 1/2″/Ext. Tail (80″) – 20′-29′ Containers (80k GVW Rating – Must Order an Additional Axle; Lift or Stationary *depends on truck wheelbase*)
A5-OR-366 366 MODELS–76.5k lb. GVWR (outer bridge)–TANDEM AXLE–Outside Rail 35 1/2″ – 24′-36′ Containers (80k GVW Rating – Must Order an Additional Axle; Lift or Stationary *depends on truck wheelbase*)
A5-IO-366 366 MODELS–76.5k lb. GVWR (outer bridge)–TANDEM AXLE–Inside/Outside Rail 35 1/2″ – 24′-36′ Containers (80k GVW Rating – May Need An Additional Axle; Lift or Stationary *depends on truck wheelbase*)

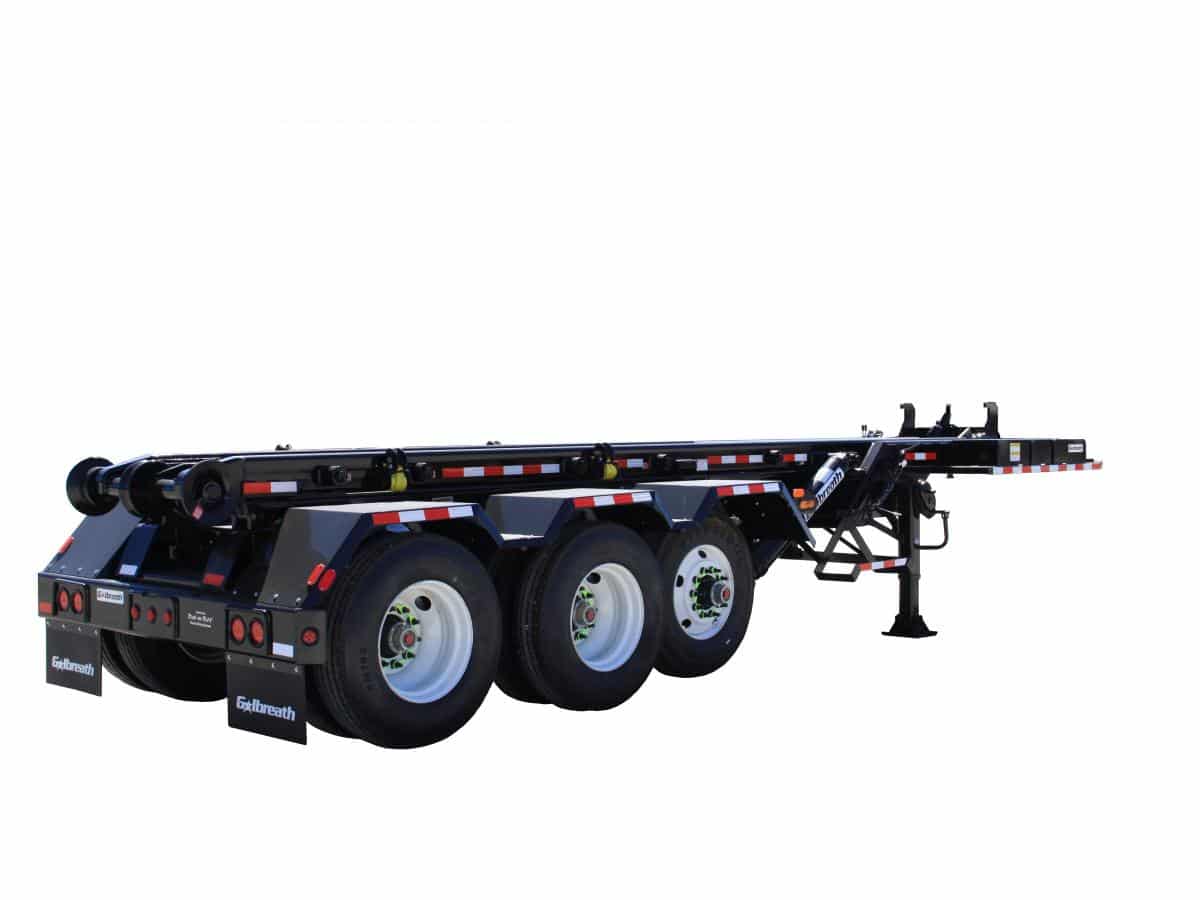

A5-HH-366 366 MODELS–76.5k lb. GVWR (outer bridge)–TANDEM AXLE–Dead Lift, Narrow Outside Rail 35″ – 24′-32′ Containers (80k GVW Rating – Must Order an Additional Axle; Lift or Stationary *depends on truck wheelbase*)
A5-EX/HH-366 366 MODELS–76.5k lb. GVWR (outer bridge)–TANDEM AXLE–Narrow Outside Rail 35″/Ext. Tail (80″) w/ Combo Front Stops – 24′-32′ Containers (80k GVW Rating – Must Order an Additional Axle; Lift or Stationary *depends on truck wheelbase*)
A5-EX-366 366 MODELS–76.5k lb. GVWR (outer bridge)–TANDEM AXLE–Outside Rail 35 1/2″/Ext. Tail (80″) – 24′-32′ Containers (80k GVW Rating – Must Order an Additional Axle; Lift or Stationary *depends on truck wheelbase*)
A5-OR-402 402 MODELS–78.5k lb. GVWR (outer bridge)–TANDEM AXLE–Outside Rail 35 1/2″ – 30′-39′ Containers (80k GVW Rating – Must Order an Additional Axle; Lift or Stationary *depends on truck wheelbase*)
A5-IO-402 402 MODELS–78.5k lb. GVWR (outer bridge)–TANDEM AXLE–Inside/Outside Rail 35 1/2″ – 30′-39′ Containers (80k GVW Rating – May Need An Additional Axle; Lift or Stationary *depends on truck wheelbase*)
A5-HH-402 402 MODELS–78.5k lb. GVWR (outer bridge)–TANDEM AXLE–Dead Lift, Narrow Outside Rail 35″ – 30′-35′ Containers (80k GVW Rating – May Need An Additional Axle; Lift or Stationary *depends on truck wheelbase*)
A5-EX-402 402 MODELS–78.5k lb. GVWR (outer bridge)–TANDEM AXLE–Outside Rail 35 1/2″/Ext. Tail (80″) – 30′-35′ Containers (80k GVW Rating – Must Order an Additional Axle; Lift or Stationary *depends on truck wheelbase*)
