Galbreath Hoist Equipment

Galbreath Heavy Duty Roll-Off “Dead PUP” Trailers

Condition: Build to Order
OEM Equipment Link

SP/AP “Dead” Pup Trailers are non-hydraulic equipped and therefore require the driver to utilize the truck’s hoist to load/ unload these trailers. These trailers are ideal for longer hauling routes when used in conjunction with a roll-off or hook lift truck. “Dead” pups are available in either (SP) spring or (AP) air ride suspensions.

Ideal for transporting two container loads safely and efficiently.

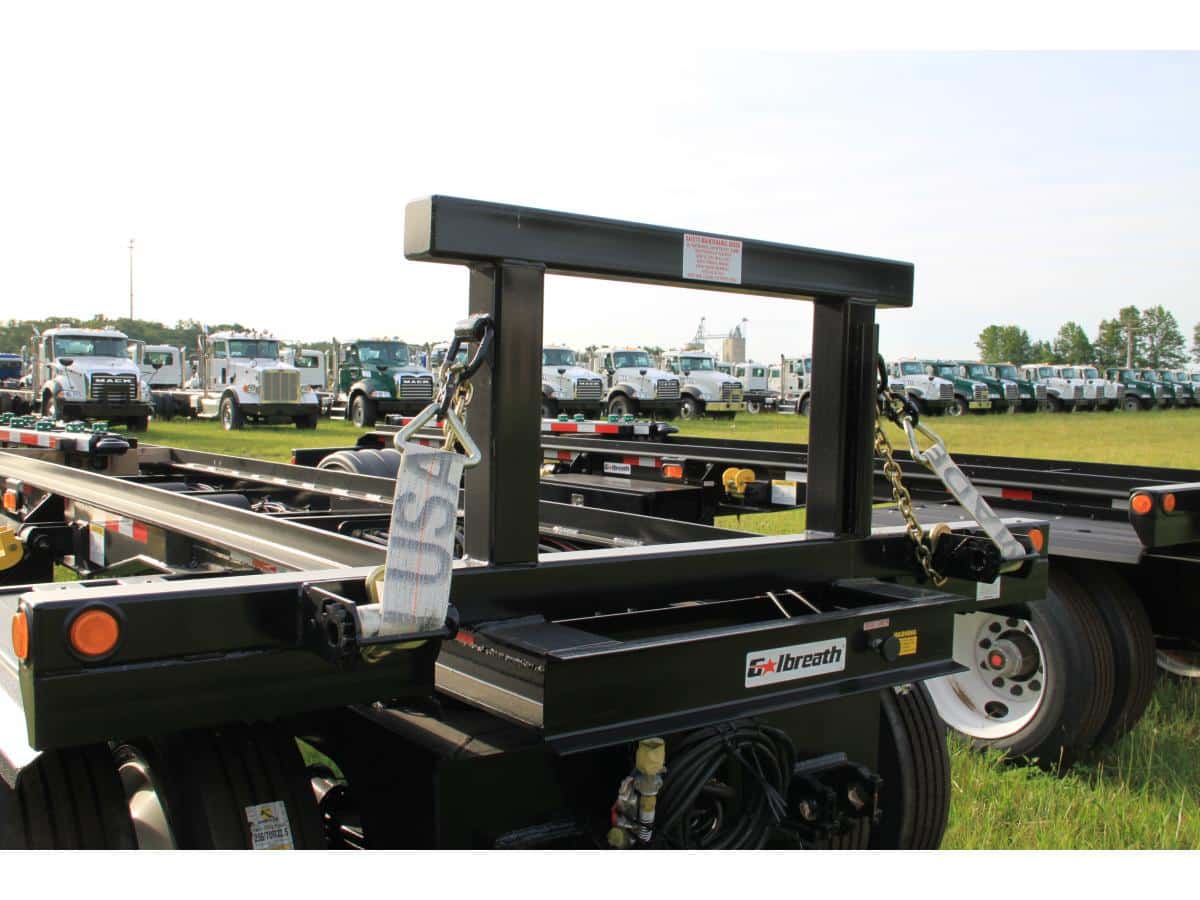

  • 10 foot trailer tongue assembly
  • Tie downs consist of winches with straps and chains and or hooks
  • 48” steel Toolbox
  • Air operated back up lock out pin, push pull valve on trailer
  • Air Brakes are automatic slack adjusters and ABS with 30/30 brake chambers
  • LED lights
  • 5/8” safety chains and 5/8” hooks on trailer tongue
  • Steel is sand blasted, two part epoxy primed and painted acrylic enamel black (other colors available)
  • Guide channel on rails, 35 ½” outside to outside
  • Lights and wiring meet FMVSS108 guidelines
  • 10 hole hub piloted steel wheels painted white with 255 / 70R-22.5 tires
  • High strength A992 & A-36 steel
  • Hutch suspension with (2 or 3) 25,000 lb. axles
  • Turntable, double ball bearing type, with remote grease zerks mounted on front of bulkhead for turntable and locking pin
  • Warranty (1-year parts and labor)

  • Toolboxes
  • Wheels and Tires
  • Tarping Systems

Model Description
SP2A PUP TRAILER – NON-HYDRAULIC–40k GVWR–Spring Ride
SP3A PUP TRAILER – NON-HYDRAULIC–52k GVWR–Spring Ride
AP2A PUP TRAILER – NON-HYDRAULIC–40k GVWR–Air Ride
AP3A PUP TRAILER – NON-HYDRAULIC–52k GVWR–Air Ride
