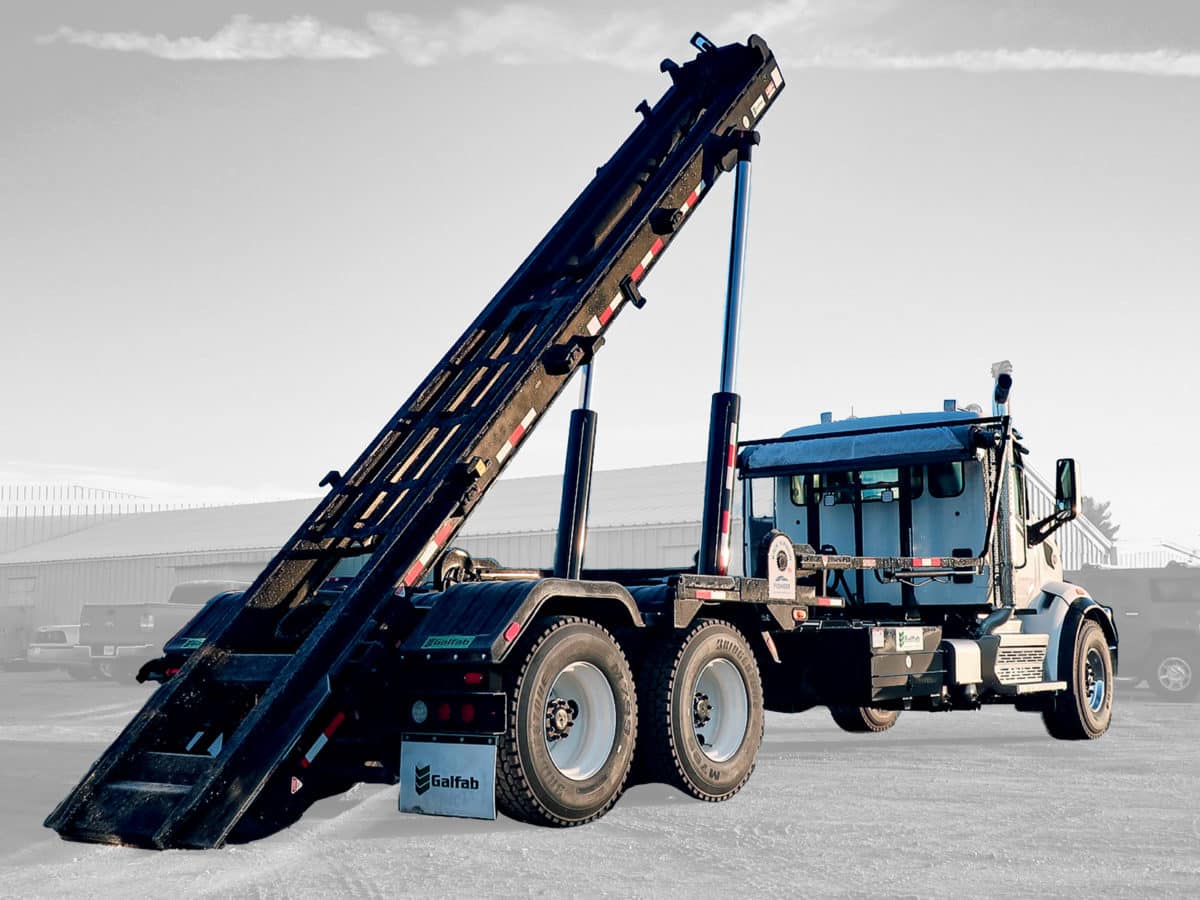

Galfab, HD Outside Rail Hoist (NOR Series)
The Galfab Heavy-Duty Outside Rail Hoist is great for severe service applications like hauling scrap, off-road or oil fields. This model has a 10″ mainframe and 75k capacity making it ideal for your heaviest loads.
- 10″ x 4″ x 1/2″ Main Frame tube
- ½ inch x 3 ½ inch wear strip on top
- ½” x 4-inch stiffener on the bottom of the mainframe
- No subframe
- All Working Points Greaseable
- 2 1/2″ Diameter Rear Hinge
- Pintle Ready Apron
- Auto Fold Forward DOT Bumper
- 1″ Spring Loaded Container Locks
- 2 1/2″ Diameter Lift Cylinder Shafts
- 12″ Diameter Vertical Sheave and 10″ Horizontal Sheaves
- 3/8 inch x 3-inch winch cylinder rod covers
- 6 inboard and outboard supported outside rollers
- Container long sill supports on rear of hoist mainframe
- 48 Gallon Oil Reservoir with sight and temperature gauge
- 25 Micron filtration
- Inside and Outside Controls
- LED Lighting System
- Choice of Forward or Reverse Mount single-stage or telescopic Lift Cylinders
- 7/8” Cable with Heavy Duty Swivel Eye Hook
- Galfab auto-fold DOT bumper
- Hoist Up Alarm
- Backup Alarm
- “The Hooker” Hold On System
- Auxiliary Stops
- Work Lights
- Behind Cab and Oversize Oil Tanks
- Tool Boxes
- Poly or Steel Fenders
- Tarping Systems
- Ratchet Tie Down Straps
- Pintle Hook
- Front Mount Pump
- PTO
- Drop Shaft
- On-Board Scale Systems
- Rear View Camera Systems

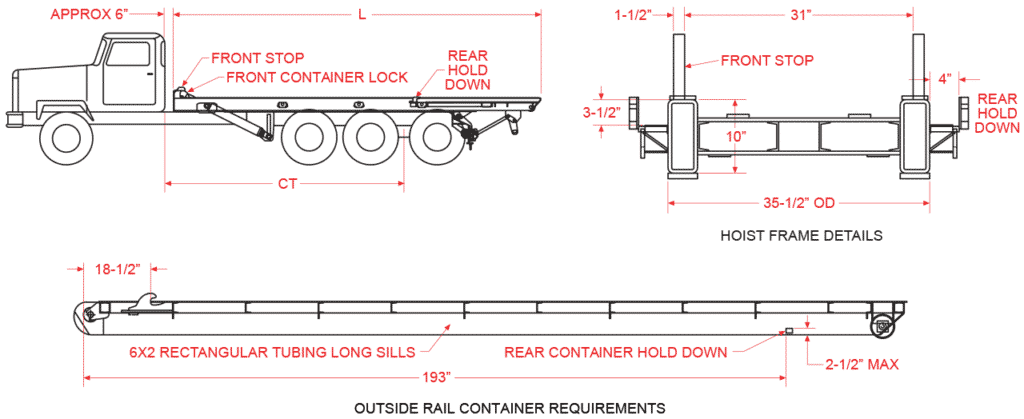

| Model | Capacity | CA | CA with tarp | Length | Dump Agle | Up (sec)* | Down (sec)* | On (sec)* | Off (sec)* | Lift Cylinder | Winch Cylinder | Container Length ft | Apx Weight lbs |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| NOR60174S072 | 60,000 | 174″ | 186″ | 23’3″ | 48° | 27 | 15 | 41 | 28 | 6″ x 4″ x 72″ DA | 7″ x 4″ x 79.5″ DA | 18′-22′ | 7550 |
| NOR60174S072R | 60,000 | 174″ | 186″ | 23’3″ | 48° | 27 | 15 | 41 | 28 | 6″ x 4″ x 72″ DA | 7″ x 4″ x 79.5″ DA | 18′-22′ | 7550 |
| NOR60174T121 | 60,000 | 174″ | 186″ | 23’3″ | 48° | 35 | 29 | 41 | 28 | 6″-5″-4″ x 121″ DAT | 7″ x 4″ x 79.5″ DA | 18′-22′ | 7225 |
| NOR75174S072F7 | 75,000 | 174″ | 186″ | 23’3″ | 48° | 37 | 23 | 41 | 28 | 7″ x 4″ x 72″ DA | 7″ x 4″ x 79.5″ DA | 18′-22′ | 7550 |
| NOR75174S072R7 | 75,000 | 174″ | 186″ | 23’3″ | 48° | 37 | 23 | 41 | 28 | 7″ x 4″ x 72″ DA | 7″ x 4″ x 79.5″ DA | 18′-22′ | 7550 |
| NOR75174T121 | 75,000 | 174″ | 186″ | 23’3″ | 48° | 35 | 29 | 41 | 28 | 6″-5″-4″ x 121″ DAT | 7″ x 4″ x 79.5″ DA | 18′-22′ | 7350 |
| NOR60194S072 | 60,000 | 194″ | 206″ | 24’11” | 48° | 27 | 15 | 46 | 31 | 6″ x 4″ x 72″ DA | 7″ x 4″ x 89.5″ DA | 20′-24′ | 7850 |
| NOR60194S072R | 60,000 | 194″ | 206″ | 24’11” | 48° | 27 | 15 | 46 | 31 | 6″ x 4″ x 72″ DA | 7″ x 4″ x 89.5″ DA | 20′-24′ | 7850 |
| NOR60194T121 | 60,000 | 194″ | 206″ | 24’11” | 48° | 35 | 29 | 46 | 31 | 6″-5″-4″ x 121″ DAT | 7″ x 4″ x 89.5″ DA | 20′-24′ | 8075 |
| NOR75194S072F7 | 75,000 | 194″ | 206″ | 24’11” | 48° | 37 | 23 | 46 | 31 | 7″ x 4″ x 72″ DA | 7″ x 4″ x 89.5″ DA | 20′-24′ | 7850 |
| NOR75194S072R7 | 75,000 | 194″ | 206″ | 24’11” | 48° | 37 | 23 | 46 | 31 | 7″ x 4″ x 72″ DA | 7″ x 4″ x 89.5″ DA | 20′-24′ | 7850 |
| NOR75194T121 | 75,000 | 194″ | 206″ | 24’11” | 48° | 35 | 29 | 46 | 31 | 6″-5″-4″ x 121″ DAT | 7″ x 4″ x 89.5″ DA | 20′-24′ | 8075 |
* Cycle Times are Factory developed and controlled by PTO output, oil viscosity, human and mechanical efficiency, and may vary accordingly.
CAUTION: This Equipment Should be Operated by Properly Trained Personnel. Improper Use, Misuse, or Lack of Maintenance Could Cause Injury to Persons or Property. Photos used in this brochure are illustrative only. We reserve the right to make changes at any time without notice. Information contained within this literature is believed to be the most accurate available at the time of printing.
