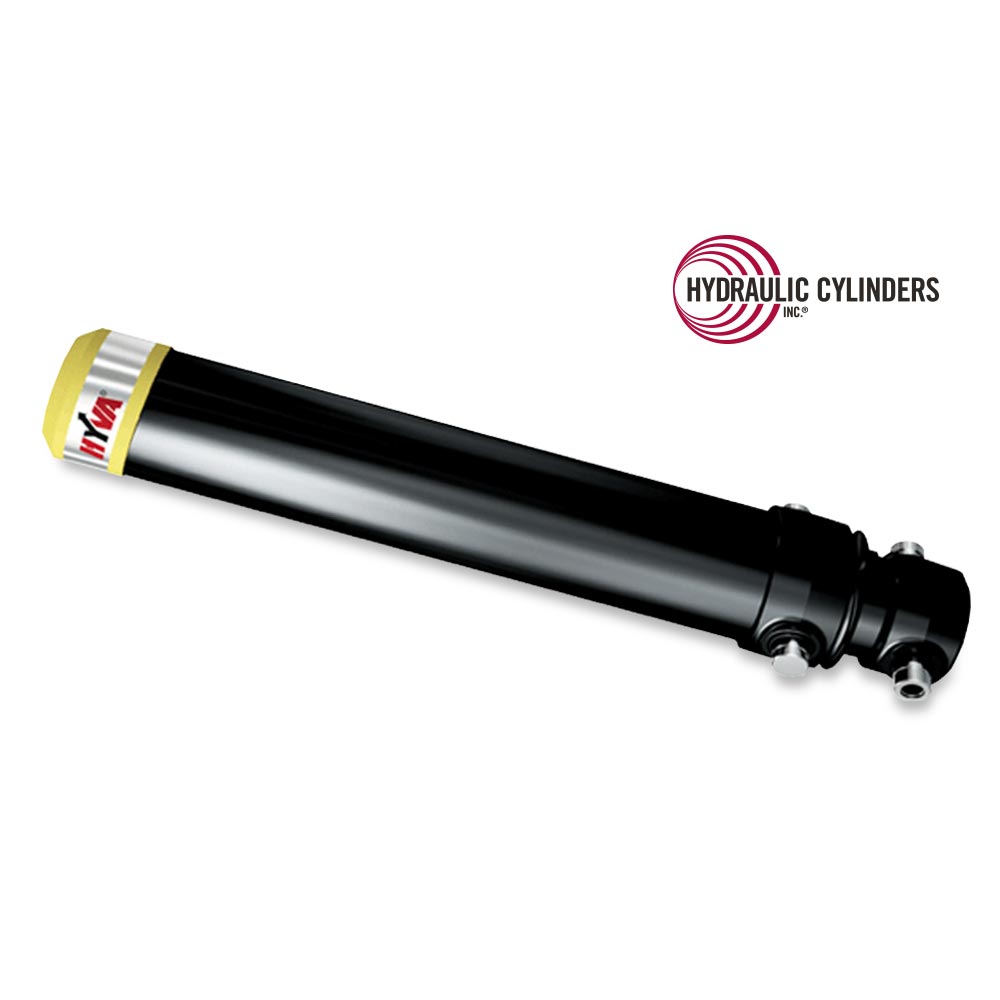

Hyva Replacement SAT Dump Hoist Cylinder 70525233
- This is a replacement telescopic hydraulic cylinder for numerous dump truck makes and models.
- The function of this cylinder is the dump truck hoist, body raise, and tipping.
- This cylinder is a high-quality replacement for the OEM version.
| Weight | 443 lbs |
|---|---|
| Base End Mount Type | Trunnion |
| Closed | 51.69″ |
| Extend Port/Plunger | -16 SAE ORB Out Base Trunnion |
| Open Extended Length | 210.09″ |
| Rod End Mount Type | Trunnion |
| Tele Largest Stage OD | 6″ |
| Telescopic Number of Stages | 4 |
| Telescopic Stroke | 158″ |
| Trunnion Closed | 7.62 |
| Trunnion Pin Dia | 2.25 |
| Trunnion Pin Length | 2 |
| Trunnion Width | 11.94 |
| Reference Part Number | Reference Name | Equipment Manufacturer | Equipment Model | Replacement Name | Cylinder Function |
|---|---|---|---|---|---|
| 096-2010-1 | Hyco | Miscellaneous Manufacturers | — | Hyva | Cap Over, Cover Tube Dump Hoist, Body Raise, Tipper |
| 096-2010-2 | Hyco / Lessard | Miscellaneous Manufacturers | — | Hyva | Cap Over, Cover Tube Dump Hoist, Body Raise, Tipper |
| 096-2011-1 | Hyco | Miscellaneous Manufacturers | — | Hyva | Cap Over, Cover Tube Dump Hoist, Body Raise, Tipper |
| 096-2011-2 | Hyco | Miscellaneous Manufacturers | — | Hyva | Cap Over, Cover Tube Dump Hoist, Body Raise, Tipper |
| 096-2031-0 | Hyco / Lessard | Miscellaneous Manufacturers | — | Hyva | Cap Over, Cover Tube Dump Hoist, Body Raise, Tipper |
| 096-2032-0 | Hyco | Miscellaneous Manufacturers | — | Hyva | Cap Over, Cover Tube Dump Hoist, Body Raise, Tipper |
| 097-2026-0 | Hyco | Miscellaneous Manufacturers | Ultratel 35 Ton Dump | Hyva | Cap Over, Cover Tube Dump Hoist, Body Raise, Tipper |
| 1156047 | Mcneilus (Street Smart Parts) | Labrie Equipment, Labrie EnviroQuip Group | Expert 2000 | Hyva | Cap Over, Cover Tube Dump Hoist, Body Raise, Tipper |
| 1156047 | Mcneilus (Street Smart Parts) | Labrie Equipment, Labrie EnviroQuip Group | Expert 2000-2 | Hyva | Cap Over, Cover Tube Dump Hoist, Body Raise, Tipper |
| 15-01-0032 | Lanau | Lanau | — | Hyva | Cap Over, Cover Tube Dump Hoist, Body Raise, Tipper |
| 15-01-0033 | Lanau | Lanau | — | Hyva | Cap Over, Cover Tube Dump Hoist, Body Raise, Tipper |
| 15-01-0062 | Lanau | Lanau | — | Hyva | Cap Over, Cover Tube Dump Hoist, Body Raise, Tipper |
| 15-01-0092 | Lanau | Lanau | — | Hyva | Cap Over, Cover Tube Dump Hoist, Body Raise, Tipper |
| 300334-AF | Highway Equipment Co | Highway Equipment Co | — | Hyva | Cap Over, Cover Tube Dump Hoist, Body Raise, Tipper |
| 3772514069 | Commercial / Parker | Miscellaneous Manufacturers | — | Hyva | Cap Over, Cover Tube Dump Hoist, Body Raise, Tipper |
| 3772514072 | Commercial / Parker | Miscellaneous Manufacturers | — | Hyva | Cap Over, Cover Tube Dump Hoist, Body Raise, Tipper |
| 3772514084 | Commercial / Parker | Miscellaneous Manufacturers | — | Hyva | Cap Over, Cover Tube Dump Hoist, Body Raise, Tipper |
| 3772514085 | Commercial / Parker | Miscellaneous Manufacturers | — | Hyva | Cap Over, Cover Tube Dump Hoist, Body Raise, Tipper |
| 3772514086 | Commercial / Parker | Miscellaneous Manufacturers | — | Hyva | Cap Over, Cover Tube Dump Hoist, Body Raise, Tipper |
| 3772514098 | Commercial / Parker | Miscellaneous Manufacturers | — | Hyva | Cap Over, Cover Tube Dump Hoist, Body Raise, Tipper |
| 3772514102 | Commercial / Parker | Miscellaneous Manufacturers | — | Hyva | Cap Over, Cover Tube Dump Hoist, Body Raise, Tipper |
| 3772514103 | Commercial / Parker | Miscellaneous Manufacturers | — | Hyva | Cap Over, Cover Tube Dump Hoist, Body Raise, Tipper |
| 3799000534 | Commercial / Parker | Miscellaneous Manufacturers | — | Hyva | Cap Over, Cover Tube Dump Hoist, Body Raise, Tipper |
| 42267A | Nordic / Nordsen | Nordic / Nordsen | — | Hyva | Cap Over, Cover Tube Dump Hoist, Body Raise, Tipper |
| 5000019 | Mailhot | Miscellaneous Manufacturers | — | Hyva | Cap Over, Cover Tube Dump Hoist, Body Raise, Tipper |
| 5000078 | Mailhot | Miscellaneous Manufacturers | — | Hyva | Cap Over, Cover Tube Dump Hoist, Body Raise, Tipper |
| 5000124 | Mailhot | Miscellaneous Manufacturers | — | Hyva | Cap Over, Cover Tube Dump Hoist, Body Raise, Tipper |
| 5000125 | Mailhot | Miscellaneous Manufacturers | — | Hyva | Cap Over, Cover Tube Dump Hoist, Body Raise, Tipper |
| 6.5-4-160-B00 | Muncie Power Products | Miscellaneous Manufacturers | — | Hyva | Cap Over, Cover Tube Dump Hoist, Body Raise, Tipper |
| 6.54-3002E-150 | Custom Hoist | Miscellaneous Manufacturers | — | Hyva | Cap Over, Cover Tube Dump Hoist, Body Raise, Tipper |
| 6.54-3002E-160 | Custom Hoist | Miscellaneous Manufacturers | — | Hyva | Cap Over, Cover Tube Dump Hoist, Body Raise, Tipper |
| 6.54-3004-150 | Custom Hoist | Miscellaneous Manufacturers | — | Hyva | Cap Over, Cover Tube Dump Hoist, Body Raise, Tipper |
| 6.54-3004-160 | Custom Hoist | Miscellaneous Manufacturers | — | Hyva | Cap Over, Cover Tube Dump Hoist, Body Raise, Tipper |
| 6.54-3010-150 | Custom Hoist | Miscellaneous Manufacturers | — | Hyva | Cap Over, Cover Tube Dump Hoist, Body Raise, Tipper |
| 6.54-3010-160 | Custom Hoist | Miscellaneous Manufacturers | — | Hyva | Cap Over, Cover Tube Dump Hoist, Body Raise, Tipper |
| 70525233 | Hyva | Miscellaneous Manufacturers | — | Hyva | Cap Over, Cover Tube Dump Hoist, Body Raise, Tipper |
| 71505246 | Hyva | Miscellaneous Manufacturers | — | Hyva | Cap Over, Cover Tube Dump Hoist, Body Raise, Tipper |
| 76416 | Henderson Products, Inc., a division of Douglas Dynamics, Inc. | Henderson Products, Inc., a division of Douglas Dynamics, Inc. | — | Hyva | Cap Over, Cover Tube Dump Hoist, Body Raise, Tipper |
| 76417 | Henderson Products, Inc., a division of Douglas Dynamics, Inc. | Henderson Products, Inc., a division of Douglas Dynamics, Inc. | Mark One 16.5 -17 | Hyva | Cap Over, Cover Tube Dump Hoist, Body Raise, Tipper |
| 82948 | Henderson Products, Inc., a division of Douglas Dynamics, Inc. | Henderson Products, Inc., a division of Douglas Dynamics, Inc. | — | Hyva | Cap Over, Cover Tube Dump Hoist, Body Raise, Tipper |
| AK6.5-4-157 | AKALIKO USA, by Rockmac Inc, is a part of AKALIKO GLOBAL | Miscellaneous Manufacturers | — | Hyva | Cap Over, Cover Tube Dump Hoist, Body Raise, Tipper |
| C-SA-150-6.5-4 | Hyco / Lessard | Miscellaneous Manufacturers | — | Hyva | Cap Over, Cover Tube Dump Hoist, Body Raise, Tipper |
| C-SA-160-6.5 | Hyco | Miscellaneous Manufacturers | — | Hyva | Cap Over, Cover Tube Dump Hoist, Body Raise, Tipper |
| C-SA-160-6.5-4 | Hyco | Miscellaneous Manufacturers | — | Hyva | Cap Over, Cover Tube Dump Hoist, Body Raise, Tipper |
| CS-160-6-4 | Mailhot | Miscellaneous Manufacturers | — | Hyva | Cap Over, Cover Tube Dump Hoist, Body Raise, Tipper |
| CS150-6-4 | Mailhot | Miscellaneous Manufacturers | — | Hyva | Cap Over, Cover Tube Dump Hoist, Body Raise, Tipper |
| CS152.5-5-3 | Mailhot | Labrie Equipment, Labrie EnviroQuip Group | TSRH1000 | Hyva | Body Raise / Dump |
| CS160-6-4 | Mailhot | Miscellaneous Manufacturers | — | Hyva | Cap Over, Cover Tube Dump Hoist, Body Raise, Tipper |
| CYLM150654 | Bibeau | Bibeau | — | Hyva | Cap Over, Cover Tube Dump Hoist, Body Raise, Tipper |
| CYLM160654 | Bibeau | Bibeau | — | Hyva | Cap Over, Cover Tube Dump Hoist, Body Raise, Tipper |
| D-PM0651504VM0427 | Mailhot | Miscellaneous Manufacturers | — | Hyva | Cap Over, Cover Tube Dump Hoist, Body Raise, Tipper |
| D-PM065150VM0427 | Mailhot | Labrie Equipment, Labrie EnviroQuip Group | Automizer 2010 | Hyva | Cap Over, Cover Tube Dump Hoist, Body Raise, Tipper |
| FC 149-4-03980-594A-K0194 | Hyva | Miscellaneous Manufacturers | — | Hyva | Cap Over, Cover Tube Dump Hoist, Body Raise, Tipper |
| FC 6.5-4-157 | Hyva | Miscellaneous Manufacturers | — | Hyva | Cap Over, Cover Tube Dump Hoist, Body Raise, Tipper |
| FC A149-4-04020-594-K0194-HC | Hyva | Miscellaneous Manufacturers | — | Hyva | Cap Over, Cover Tube Dump Hoist, Body Raise, Tipper |
| FC A6.5-4-158-K8-HC | Hyva | Miscellaneous Manufacturers | — | Hyva | Cap Over, Cover Tube Dump Hoist, Body Raise, Tipper |
| FC-149-4-03980-594A-K0194 | Hyva | Miscellaneous Manufacturers | — | Hyva | Cap Over, Cover Tube Dump Hoist, Body Raise, Tipper |
| FC-6.5-4-157 | Hyva | Miscellaneous Manufacturers | — | Hyva | Cap Over, Cover Tube Dump Hoist, Body Raise, Tipper |
| FC149-4-03980-594A-K0194 | Hyva | Miscellaneous Manufacturers | — | Hyva | Cap Over, Cover Tube Dump Hoist, Body Raise, Tipper |
| FC6.5-4-157 | Hyva | Miscellaneous Manufacturers | — | Hyva | Cap Over, Cover Tube Dump Hoist, Body Raise, Tipper |
| G3 150-5.7-4 | Mailhot | Labrie Equipment, Labrie EnviroQuip Group | Expert 2000 | Hyva | Cap Over, Cover Tube Dump Hoist, Body Raise, Tipper |
| G3 150-5.7-4 | Mailhot | Henderson Products, Inc., a division of Douglas Dynamics, Inc. | — | Hyva | Cap Over, Cover Tube Dump Hoist, Body Raise, Tipper |
| G3 160-5.7-4 | Mailhot | Miscellaneous Manufacturers | — | Hyva | Cap Over, Cover Tube Dump Hoist, Body Raise, Tipper |
| G3-150-5.7-4 | Mailhot | Labrie Equipment, Labrie EnviroQuip Group | Expert 2000 | Hyva | Cap Over, Cover Tube Dump Hoist, Body Raise, Tipper |
| G3-150-5.7-4 | Mailhot | Henderson Products, Inc., a division of Douglas Dynamics, Inc. | — | Hyva | Cap Over, Cover Tube Dump Hoist, Body Raise, Tipper |
| G3-160-5.7-4 | Mailhot | Miscellaneous Manufacturers | — | Hyva | Cap Over, Cover Tube Dump Hoist, Body Raise, Tipper |
| G4 150-5.7-4 | Mailhot | Highway Equipment Co | — | Hyva | Cap Over, Cover Tube Dump Hoist, Body Raise, Tipper |
| G4-150-5.7-4 | Mailhot | Highway Equipment Co | — | Hyva | Cap Over, Cover Tube Dump Hoist, Body Raise, Tipper |
| GS 150-5.7-4 | Mailhot | Miscellaneous Manufacturers | — | Hyva | Cap Over, Cover Tube Dump Hoist, Body Raise, Tipper |
| GS150-5.7-4 | Mailhot | Miscellaneous Manufacturers | — | Hyva | Cap Over, Cover Tube Dump Hoist, Body Raise, Tipper |
| HYC01425-01 | Labrie Equipment, Labrie EnviroQuip Group | Labrie Equipment, Labrie EnviroQuip Group | Expert 2000 | Hyva | Cap Over, Cover Tube Dump Hoist, Body Raise, Tipper |
| HYC01425-01 | Labrie Equipment, Labrie EnviroQuip Group | Labrie Equipment, Labrie EnviroQuip Group | Expert 2000-2 | Hyva | Cap Over, Cover Tube Dump Hoist, Body Raise, Tipper |
| HYC01425-02 | Labrie Equipment, Labrie EnviroQuip Group | Labrie Equipment, Labrie EnviroQuip Group | Automizer | Hyva | Cap Over, Cover Tube Dump Hoist, Body Raise, Tipper |
| HYC01425-02 | Labrie Equipment, Labrie EnviroQuip Group | Labrie Equipment, Labrie EnviroQuip Group | Automizer Right Hand | Hyva | Cap Over, Cover Tube Dump Hoist, Body Raise, Tipper |
| HYC01425-02 | Labrie Equipment, Labrie EnviroQuip Group | Labrie Equipment, Labrie EnviroQuip Group | Automizer 2010 | Hyva | Cap Over, Cover Tube Dump Hoist, Body Raise, Tipper |
| HYC02010 | Labrie Equipment, Labrie EnviroQuip Group | Labrie Equipment, Labrie EnviroQuip Group | TSRH1000 | Hyva | Body Raise / Dump |
| HYC02010 | Labrie Equipment, Labrie EnviroQuip Group | Labrie Equipment, Labrie EnviroQuip Group | Top Select 1000 | Hyva | Body Raise / Dump |
| HYC02010 | Labrie Equipment, Labrie EnviroQuip Group | Labrie Equipment, Labrie EnviroQuip Group | Top Select 2000 | Hyva | Body Raise / Dump |
| HYC02010R | Labrie Equipment, Labrie EnviroQuip Group | Labrie Equipment, Labrie EnviroQuip Group | TSRH1000 | Hyva | Body Raise / Dump |
| HYCO2010 | Labrie Equipment, Labrie EnviroQuip Group | Labrie Equipment, Labrie EnviroQuip Group | TSRH1000 | Hyva | Body Raise / Dump |
| LB-HYC02010 | Refuse Parts Depot, RPD, a Wastebuilt Co | Labrie Equipment, Labrie EnviroQuip Group | Top Select 2000 | Hyva | Body Raise / Dump |
| M150-6-4 | Mailhot | Miscellaneous Manufacturers | — | Hyva | Cap Over, Cover Tube Dump Hoist, Body Raise, Tipper |
| M150-6.5-4 | Mailhot | Labrie Equipment, Labrie EnviroQuip Group | Expert 2000 | Hyva | Cap Over, Cover Tube Dump Hoist, Body Raise, Tipper |
| M150-6.5-4 | Mailhot | Henderson Products, Inc., a division of Douglas Dynamics, Inc. | — | Hyva | Cap Over, Cover Tube Dump Hoist, Body Raise, Tipper |
| M160-6.5-4 | Mailhot | Miscellaneous Manufacturers | — | Hyva | Cap Over, Cover Tube Dump Hoist, Body Raise, Tipper |
| M163-6-4 | Mailhot | Miscellaneous Manufacturers | — | Hyva | Cap Over, Cover Tube Dump Hoist, Body Raise, Tipper |
| NTGC-156-6.5-4 | Nordic / Nordsen | Nordic / Nordsen | — | Hyva | Cap Over, Cover Tube Dump Hoist, Body Raise, Tipper |
| PG05711504VM0148 | Mailhot | Miscellaneous Manufacturers | — | Hyva | Cap Over, Cover Tube Dump Hoist, Body Raise, Tipper |
| PG0571504VM0148 | Mailhot | Labrie Equipment, Labrie EnviroQuip Group | Expert 2000 | Hyva | Cap Over, Cover Tube Dump Hoist, Body Raise, Tipper |
| PG0571504VM0148 | Mailhot | Henderson Products, Inc., a division of Douglas Dynamics, Inc. | — | Hyva | Cap Over, Cover Tube Dump Hoist, Body Raise, Tipper |
| PG0571504VM0224 | Mailhot | Highway Equipment Co | — | Hyva | Cap Over, Cover Tube Dump Hoist, Body Raise, Tipper |
| PG0571604VM0149 | Mailhot | Miscellaneous Manufacturers | — | Hyva | Cap Over, Cover Tube Dump Hoist, Body Raise, Tipper |
| PM0601504VM0078 | Mailhot | Miscellaneous Manufacturers | — | Hyva | Cap Over, Cover Tube Dump Hoist, Body Raise, Tipper |
| PM0601634VM0019 | Mailhot | Miscellaneous Manufacturers | — | Hyva | Cap Over, Cover Tube Dump Hoist, Body Raise, Tipper |
| PM0651504VM0124 | Mailhot | Miscellaneous Manufacturers | — | Hyva | Cap Over, Cover Tube Dump Hoist, Body Raise, Tipper |
| PM0651504VM0396 | Mailhot | Miscellaneous Manufacturers | — | Hyva | Cap Over, Cover Tube Dump Hoist, Body Raise, Tipper |
| PM0651604VM0125 | Mailhot | Miscellaneous Manufacturers | — | Hyva | Cap Over, Cover Tube Dump Hoist, Body Raise, Tipper |
| PM0651604VM0393 | Mailhot | Miscellaneous Manufacturers | — | Hyva | Cap Over, Cover Tube Dump Hoist, Body Raise, Tipper |
| PS0501533VM0469 | Mailhot | Labrie Equipment, Labrie EnviroQuip Group | TSRH1000 | Hyva | Body Raise / Dump |
| PS0601504VM0047 | Mailhot | Miscellaneous Manufacturers | — | Hyva | Cap Over, Cover Tube Dump Hoist, Body Raise, Tipper |
| PS0601604VM0161 | Mailhot | Miscellaneous Manufacturers | — | Hyva | Cap Over, Cover Tube Dump Hoist, Body Raise, Tipper |
| PS0601604VM0244 | Mailhot | Miscellaneous Manufacturers | — | Hyva | Cap Over, Cover Tube Dump Hoist, Body Raise, Tipper |
| S74MM-1-160 | Commercial / Parker | Miscellaneous Manufacturers | — | Hyva | Cap Over, Cover Tube Dump Hoist, Body Raise, Tipper |
| S74MM-2-160 | Commercial / Parker | Miscellaneous Manufacturers | — | Hyva | Cap Over, Cover Tube Dump Hoist, Body Raise, Tipper |
| S74MM-2G-150 | Commercial / Parker | Miscellaneous Manufacturers | — | Hyva | Cap Over, Cover Tube Dump Hoist, Body Raise, Tipper |
| S74MM-2G-160 | Commercial / Parker | Miscellaneous Manufacturers | — | Hyva | Cap Over, Cover Tube Dump Hoist, Body Raise, Tipper |
| S74MM-3-160 | Commercial / Parker | Miscellaneous Manufacturers | — | Hyva | Cap Over, Cover Tube Dump Hoist, Body Raise, Tipper |
| S74MM-5-160 | Commercial / Parker | Miscellaneous Manufacturers | — | Hyva | Cap Over, Cover Tube Dump Hoist, Body Raise, Tipper |
| S74MM-7G-150 | Commercial / Parker | Miscellaneous Manufacturers | — | Hyva | Cap Over, Cover Tube Dump Hoist, Body Raise, Tipper |
| S74MM-7G-160 | Commercial / Parker | Miscellaneous Manufacturers | — | Hyva | Cap Over, Cover Tube Dump Hoist, Body Raise, Tipper |
| S74MM-CP534-160 | Commercial / Parker | Miscellaneous Manufacturers | — | Hyva | Cap Over, Cover Tube Dump Hoist, Body Raise, Tipper |
| SA150-6.5-4-TT-54.87-7.62 | Hyco | Miscellaneous Manufacturers | — | Hyva | Cap Over, Cover Tube Dump Hoist, Body Raise, Tipper |
| SA160-6.5-4-TT-54.87-7.62 | Hyco | Miscellaneous Manufacturers | — | Hyva | Cap Over, Cover Tube Dump Hoist, Body Raise, Tipper |
| SA160-7-4-TT-56.25-7.62 | Hyco | Miscellaneous Manufacturers | Ultratel 35 Ton Dump | Hyva | Cap Over, Cover Tube Dump Hoist, Body Raise, Tipper |
