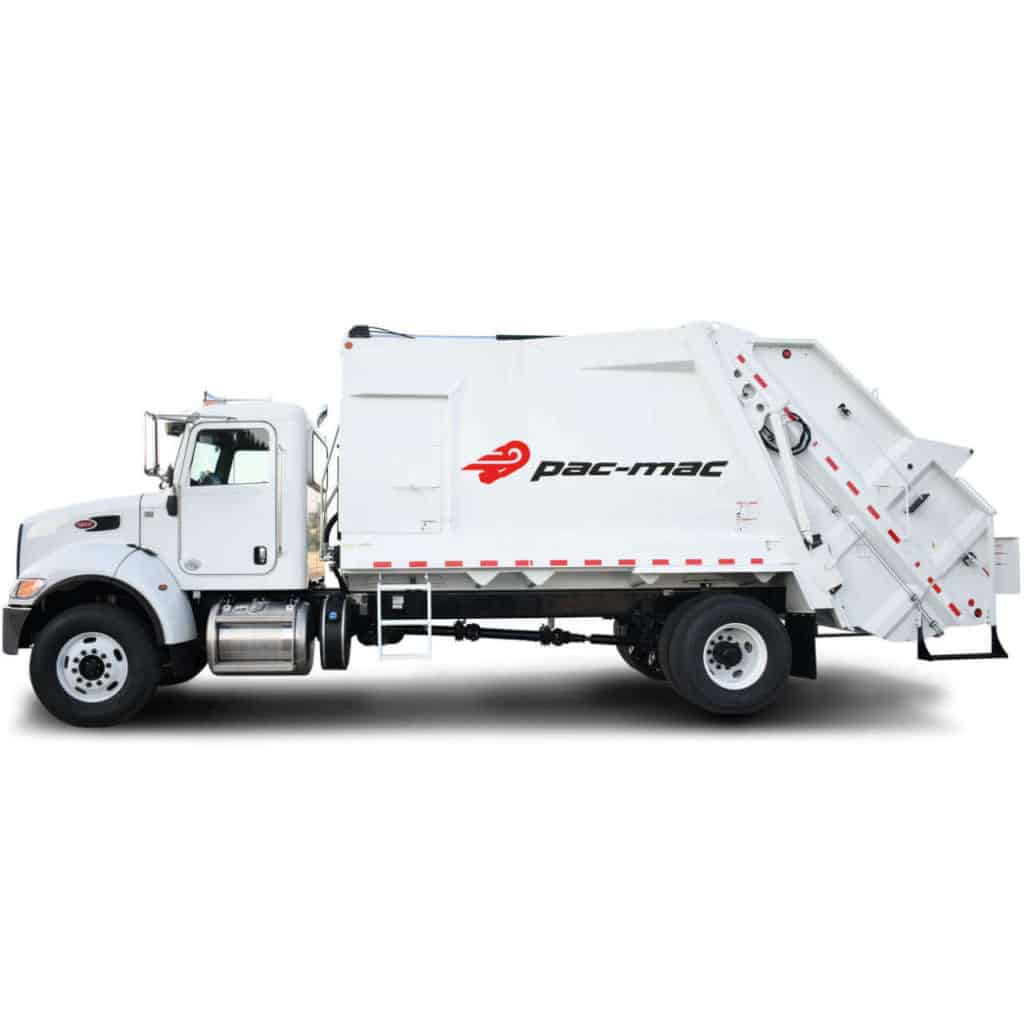

Pac-Mac RLX Series (Rear Loader) Refuse Truck

Condition: Build to Order
Make: Pac-Mac
OEM Equipment Link

World class manufacturing and cutting-edge technology merge to create a superior product: The Pac-Mac® RLX Series. This unit is available in 18, 20, 25 cubic yards with a compaction rate of 1,000+ lbs/yd. Our rear loader truck is engineered using the most advanced computer modeling systems, proving that Pac-Mac is committed to providing the highest quality products in the solid waste industry.

Description RLX 18 RLX 20 RLX 20 “Brutal” RLX 25 RLX 25 “Brutal”
Capacity 18 yd3 20 yd3 20 yd3 25 yd3 25 yd3
Hopper Capacity 3.61 yd3 3.61 yd3 3.61 yd3 3.61 yd3 3.61 yd3
Body Weight (Body Shell Only) 4,779 lb 5,118 lb 5,118 lb 5,885 lb 5,885 lb
Body Weight (Complete Unit, Less Options) 12,700 lb 13,000 lb 13,000 lb 14,000 lb 14,000 lb
Hopper Inside Width 80″ 80″ 80″ 80″ 80″
Sidewalls (Curved Shell) 10 ga 80,000 PSI 10 ga 80,000 PSI 10 ga 80,000 PSI 10 ga 80,000 PSI 10 ga 80,000 PSI
Floor (Single Sheet, Flat) 3/16″ high tensile steel 3/16″ high tensile steel 3/16″ high tensile steel 3/16″ high tensile steel 3/16″ high tensile steel
Roof (Curved Shell) 10 ga 80,000 PSI 10 ga 80,000 PSI 10 ga 80,000 PSI 10 ga 80,000 PSI 10 ga 80,000 PSI
Ejection Panel Face 10 ga 80,000 PSI 10 ga 80,000 PSI 10 ga 80,000 PSI 10 ga 80,000 PSI 10 ga 80,000 PSI
Hopper 1/4″ 100,000 PSI (T-1) 1/4″ 100,000 PSI (T-1) 1/4″ 100,000 PSI (T-1) 1/4″ 100,000 PSI (T-1) 1/4″ 100,000 PSI (T-1)
Packer Panel Face 1/4″ 100,000 PSI (T-1) 1/4″ 100,000 PSI (T-1) 1/4″ 100,000 PSI (T-1) 1/4″ 100,000 PSI (T-1) 1/4″ 100,000 PSI (T-1)
Slide Panel Face 3/16″ T-1 steel 3/16″ T-1 steel 3/16″ T-1 steel 3/16″ T-1 steel 3/16″ T-1 steel
Hopper Sides 3/16″ T-1 steel (lower tailgate); 10 ga 80 ksi steel (upper tailgate) 3/16″ T-1 steel (lower tailgate); 10 ga 80 ksi steel (upper tailgate) 3/16″ T-1 steel (lower tailgate); 10 ga 80 ksi steel (upper tailgate) 3/16″ T-1 steel (lower tailgate); 10 ga 80 ksi steel (upper tailgate) 3/16″ T-1 steel (lower tailgate); 10 ga 80 ksi steel (upper tailgate)
Hydraulic Cylinder Ejector (1) 2-stage 5.5″ bore (1) 2-stage 5.5″ bore (1) 2-stage 5.5″ bore (1) 3-stage 6.5″ bore (1) 3-stage 6.5″ bore
Hydraulic Cylinder Tailgate (2) 3″ bore; 1.75″ rod; 38″ stroke (2) 3″ bore; 1.75″ rod; 38″ stroke (2) 3″ bore; 1.75″ rod; 38″ stroke (2) 3″ bore; 1.75″ rod; 38″ stroke (2) 3″ bore; 1.75″ rod; 38″ stroke
Hydraulic Cylinder Slide (2) 5″ bore; 4″ rod; 30″ stroke (2) 5″ bore; 4″ rod; 30″ stroke (2) 5.5″ bore; 4.5″ rod; 29″ stroke (2) 5″ bore; 4″ rod; 30″ stroke (2) 5.5″ bore; 4″ rod; 29″ stroke
Hydraulic Cylinder Packer (2) 4.5″ bore; 3.5″ rod; 24.38″ stroke (2) 4.5″ bore; 3.5″ rod; 24.38″ stroke (2) 4.5″ bore; 3.5″ rod; 24.38″ stroke (2) 4.5″ bore; (2) 4.5″ bore; 3.5″ rod; 24.38″ stroke
Hydraulic Shutoff Valve Ball Ball Ball Ball Ball
Hydraulic Packing Controls Valve Sectional spool Sectional spool Sectional spool Sectional spool Sectional spool
Hydraulic Ejector/Tailgate Raise Valve Sectional spool Sectional spool Sectional spool Sectional spool Sectional spool
Operating Pressure 2,500 psi 2,500 psi 2,500 psi 2,500 psi 2,500 psi
Maximum Operating Pressure 2,750 psi 2,750 psi 2,750 psi 2,750 psi 2,750 psi
Gallons Per Minute 35-38 GPM 35-38 GPM 35-38 GPM 35-38 GPM 35-38 GPM
Reservoir 50 gal. 50 gal. 50 gal.
Packing Cycle Time (Complete) 17-19 sec 17-19 sec 24 sec 17-19 sec 24 sec
Packing Cycle Time (Reload) 3 sec 3 sec 4 sec 3 sec 4 sec
Compaction Rate 900+ lb/yd 900+ lb/yd 1000+ lb/yd 900+ lb/yd 1000+ lb/yd

  • One piece flat floor
  • Curved shell body
  • Fast cycle time
  • Meets or exceeds ANSI standards
  • Wide open accessibility for cleaning and maintenance
  • Automatic latches and integrated tailgate props
  • The industry’s highest standard for hydraulic cleanliness
  • LED lighting, weatherproof connections and braided loom
  • Dual Amber oval rear strobes
  • Heat-treated pins and replaceable bushings throughout
  • Large access door with safety interlock
  • Emergency stop on curb side
  • Driver alert buttons on both sides
  • Sectional valves

  • Single or dual cart tippers
  • Reeving system: 15K cylinder
  • Kick bar and container latches
  • Front-mounted pump
  • Amber or clear beacon rear strobes (single or dual)
  • Amber oval flush mount strobes (front and/or rear)
  • Smart light strobe system (may be combined with amber ovals)
  • Rear vision camera
  • Work lights over hopper and tailgate sides
  • Frame mounted water cooler
  • Frame mounted tool box
  • Emergency stop on street side
  • Pressure gauge
  • Limb guard
