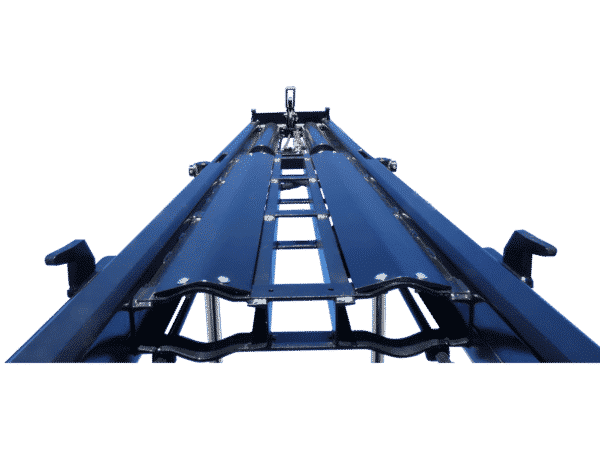

Pac-Mac Roll-Off Container Cable Hoist

Hoist rated capacity

• 60,000 lbs. or 75,000 lbs.

Main Frame

• 8″ x 4″ x 1/2″ A500 C Tubing

Sub Frame

• 4″ x 2″ x 1/4″ A500 C Tubing

Front Stop

• 1-1/2″ plate

Container lock

• Automatic spring loaded

Lift cylinder pins

• 2-1/2″ solid

Rear hinge pins

• 3″ solid

Cable

• 7/8″

Cable sheaves

• 10″ O.D. bronze-bushed 2.5″ I.D.

Cable anchor

• 4 forged cable clamps

Cable end

• Steel casting

Rear hold down

• 1″ plate located for std. containers

Middle hold down

• 3/4″ plate

Lift cylinders

• 6″ x 72″ double acting

Reeving cylinders

• 7″ x 79.5″ double acting

Direct mount pump

• Gear type 35 gpm at 1500 rpm

Operating pressure

• 1850 psi

Hydraulic valve

• 2 spool 45 gpm or 5 spool for use with tarper.

Inside Controls

• Swing-away console with pneumatic levers

Hoise-up alarm

• Hi-lo audible alarm at rear. Flashing red lamp and buzzer in cab.

Hydraulic reservoir

• 50 gallon behind cab

Filtration

• 10 micron filter, 100 mesh suction screen, 10 micron breather.

Outside rollers

• 4″ O.D. double shear with bronze bushing and replaceable pins.

Maintenance props

• Two, integrated

I.C.C. Bumper

• Mechanical forward-folding. Stowable for trailer clearance.

Container length

• Up to 22′

Approximate weight

• 6,700 lbs (Hoist only, without options)

• 60,000 lbs. or 75,000 lbs. capacity
• For outside rail containers up to 22′ long x 8′ tall
• Automatic roller lock
• Hydraulic tank located at the back of the cab for improved cooling, improved supply to pump, and stays cleaner.
• Spin-on oil filter, spin-on breather, and sight glass with temperature gauge.
• Hydraulic pressure gauge
• Sectional manual control valve outside of cab.
• Hol-Mac reverse-mounted 6″ lift cylinders. 7″ reeving cylinders. Made in USA
• Sleeved hoses for protection.
• Hoist controls inside the cab on a swing-away control tower *Patent Pending
• Rigid rear container hold downs.
• Sliding rear strap winch hold downs.
• Steel line plumbing reduces rubber hoses to a minimum. *Patent Pending
• 10″ cable sheaves with 2-1/2″ pins.
• 4″ O.D. double-shear heavy duty side rollers with replaceable pins.
• Auto upward folding mechanical ICC Bumper. Stowable for trailering.
• Pintle-ready hitch rear attachment point.
• Dual safety props for maintenance.
• Dual tone back-up alarm and hoist up alarm with signal light in cab.
• DOT approved recessed LED lighting and reflectors.
• Mid-body LED turn signals.
• High-mounted license plate bracket.
• Rear camera guard. (rear camera sold separately)
• Heavy duty cable end storage.
• Bolt-on replaceable steel fenders with hydraulic guard line. *Patent Pending
• Replaceable bolt-on 8″ wide x 1/2″ thick rear sheave guards.
• 49-degree tilt angle.
• Mud flaps front and rear.
• All lube fittings are accessible from ground level.
• Wiring runs through a full-length steel conduit.

• Integrated arm-type tarper.
• Fold-down auxiliary front stops for short containers.
• Two work lights mounted on rear light boxes.
• Steel toolbox 18″ x 18″ x 48″ left, right, or both.
• Bolt-on On-board Scale kit. No modifications required.
• Rear camera guard (rear camera sold separately)
• On-board scale options: scale readouts printer and camera monitor.
