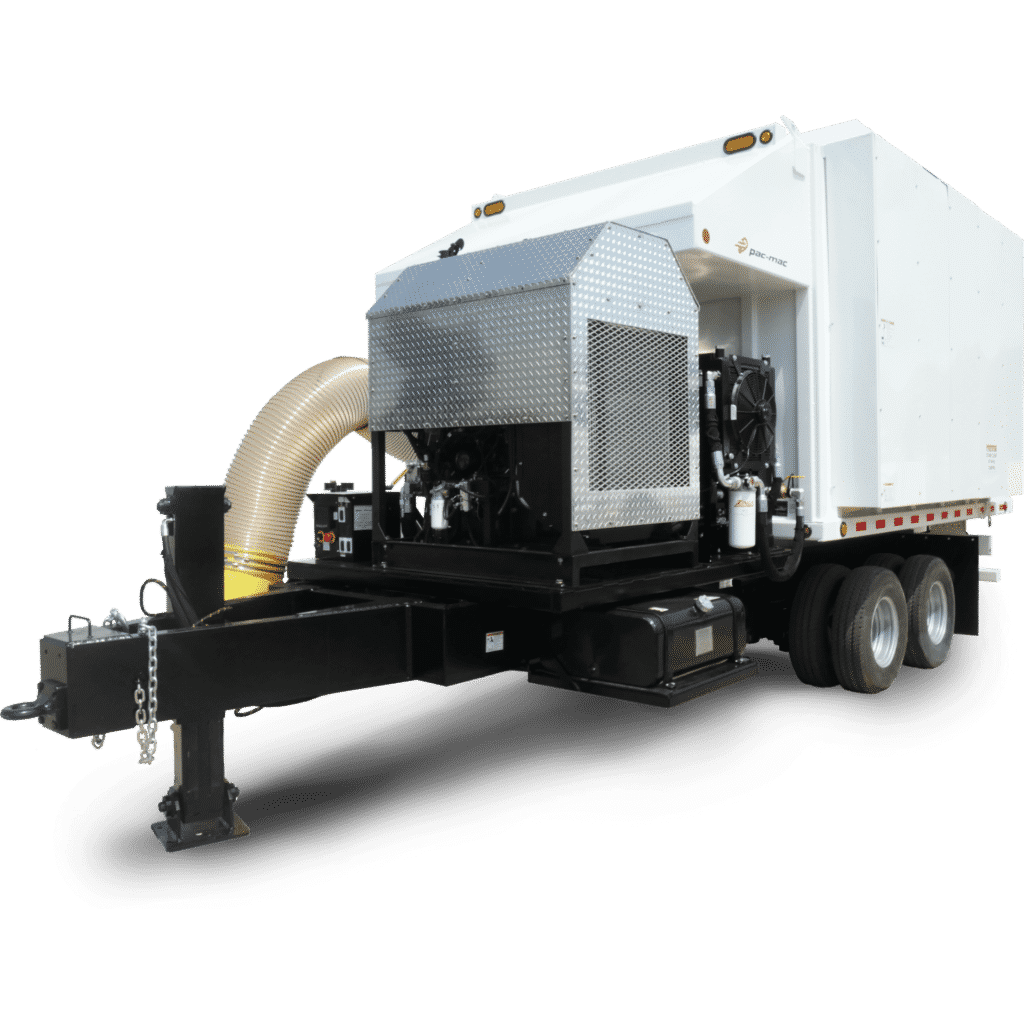

Pac-Mac® Trailer Mounted Leaf Vacuum System

Capacity

• 25/30 cu. yd.

Container Length

• 204 in.

Drive Skid Length

• 78 in.

Overall Length

• 296 in.

Empty Weight

• 12,500 lbs.

Container and Drive Skid Combined Weight

• 10,500 lbs.

Frame to Highest Point

• 134 in.

Body Construction Specifications

Walls

• 12 ga. side ribs / 24 in. spacing

Floor

• 3/16 in. / 4 in. joists / 24 in. spacing

Door

• Barn doors
• Top hinged door

Lighting

• DOT compliant LED lighting and markers
• Two oval strobe lights front and rear

Performance Specifications

Engine

• 74 HP Kubota Tier 4

Engine Controls/Digital Readout

• On/Start/Off switch, throttle, RPM, oil pressure, temperature, and safety shutdown in the event of low oil pressure or over heating

Hydraulic Drive

• Variable displacement hydraulic pump provides power to all hydraulic functions

Impeller

• 32 in. 6 blade constructed of wear resistant high strength steel

Liner

• Replaceable design made from 0.25 in. thick, wear resistant high strength steel

Hinged Inlet Door

• Quick access to fan without removing the hose

Boom

• Curb-side mounted extendable up to 8 ft, 3-way, hydraulic boom operation via the in-cab joystick

Controls

• All engine and hydraulic operations are controlled in the cab
• Wireless control option

Intake Hose

• Wear resistant 16 in. dia.

Container Hoist

• 48.5° tilt using two double acting dump cylinders

• Frame: ladder style constructed of 12 in. C-channel with 5 in.
• C-channel cross members
• Two 12,000 lbs. axles with electric brakes
• Tow tongue: A-frame with heavy duty 21 ton pintle hitch ring

• Self-contained collection trailer including container
• Capable of being towed by a variety of vehicles
• Hydraulic fan drive offers smooth engine to fan coupling with no maintenance to clutches or belt drives
• 5 micron return filtration
• Strobe lighting in front and rear
• Robust latch to lock stowed boom for travel
• Leaf container is vented towards the bottom, street side
• Removable expanded metal container vent coverings for ease of cleaning

• Rear view camera
• Boom view camera
• Barn door or hydraulic single door
• 3 way remote operated boom (trailer-mounted only)
• Hydraulic jack or manual jack (trailer-mounted only)
• Carbon paint option
• 15,780 lbs. for a trailer mounted unit
• Bucket seats when hydraulic control option is chosen
