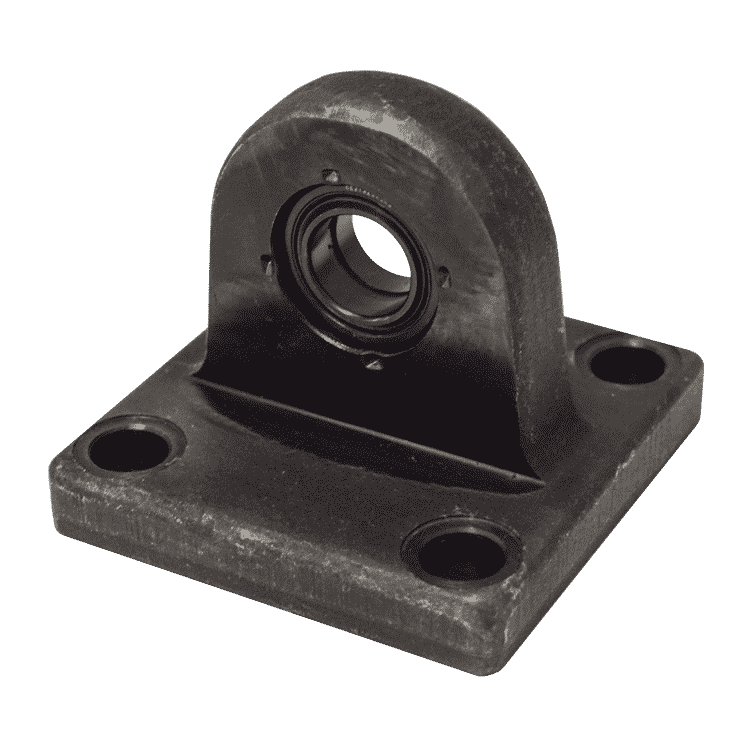

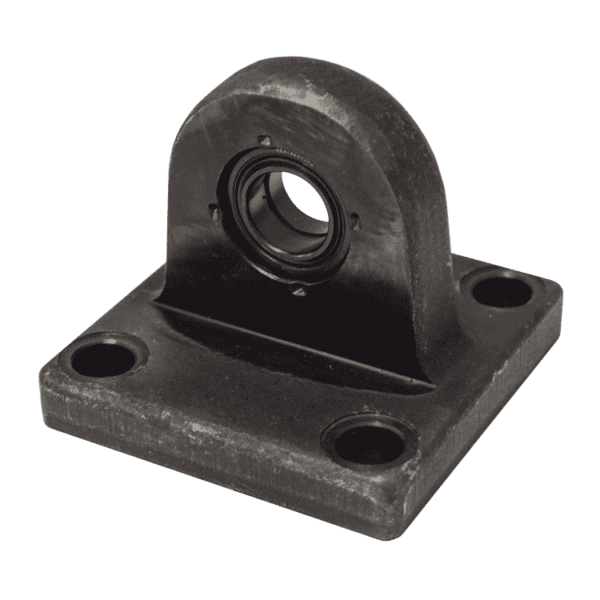

Spherical Eye Bracket
Condition:
OEM New
Make:
Aggressive Hydraulics
Partners:
Aggressive Hydraulics, Hydraulic Cylinders, Inc.
- Material: 05, 07, and 10 are 1144 steel forging; 13 and up are ductile iron casting
- Drilled for 4 mounting bolts
- Includes spherical (self-aligning) bearing
- Note: eye brackets are not weldable

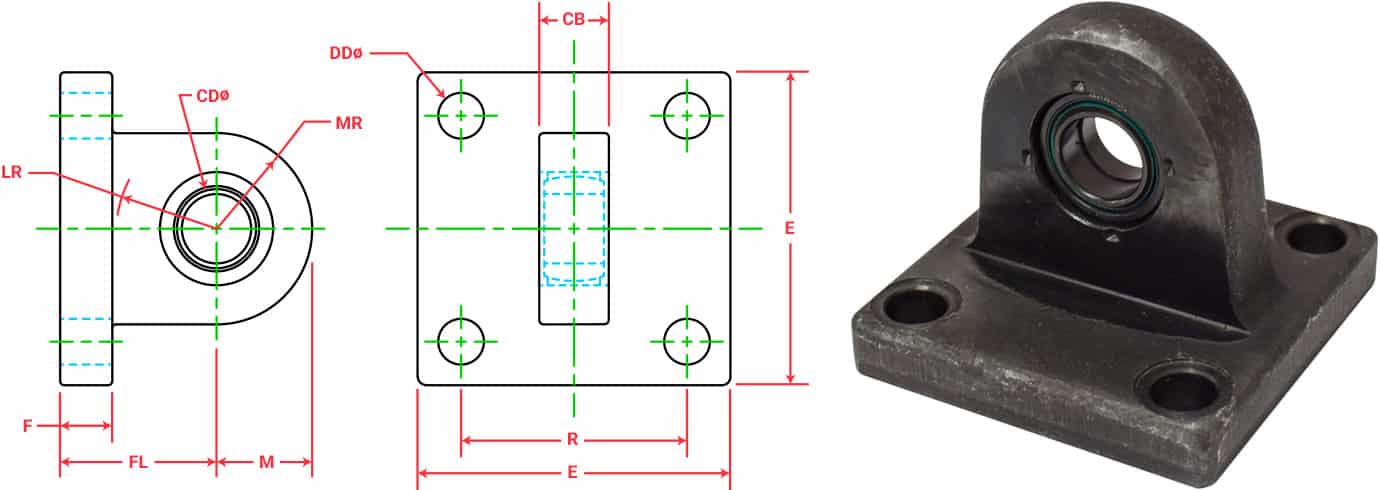

| Part Number | CB | CD +.0000 -.0005 | DD | E | F | FL | LR | M | MR | R |
|---|---|---|---|---|---|---|---|---|---|---|
| BDS-05 | 0.50 | 0.50 | 0.41 | 2.50 | 0.38 | 1.13 | 0.75 | 0.69 | 0.69 | 1.62 |
| BDS-07 | 0.75 | 0.75 | 0.53 | 3.50 | 0.63 | 1.88 | 1.25 | 1.19 | 1.19 | 2.56 |
| BDS-10 | 1.00 | 1.00 | 0.66 | 4.50 | 0.75 | 2.25 | 1.50 | 1.38 | 1.38 | 3.25 |
| BDS-13 | 1.38 | 1.38 | 0.66 | 5.00 | 0.88 | 3.00 | 2.13 | 2.00 | 2.00 | 3.81 |
| BDS-17 | 1.50 | 1.75 | 0.91 | 6.50 | 0.88 | 3.13 | 2.25 | 2.13 | 2.13 | 4.94 |
| BDS-20 | 1.75 | 2.00 | 1.03 | 7.50 | 1.00 | 3.50 | 2.50 | 2.38 | 2.38 | 5.75 |
Please contact one of the EMP Partner(s) below:
Aggressive Hydraulics (HQ)
Call: (763) 792-4000
18800 Ulysses Street Northeast
East Bethel, Minnesota
Hydraulic Cylinders, Inc. (HQ)
Call: (888) 771-1894
680 East Dual Boulevard Northeast
Isanti, Minnesota
Request a Quote
Contact for Price
